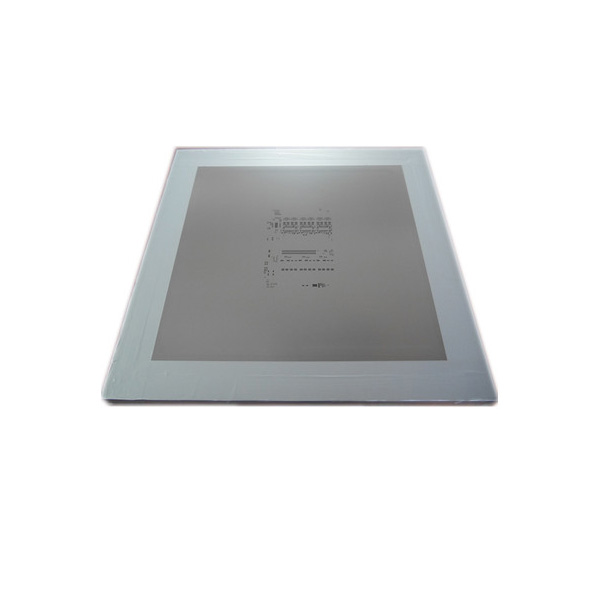

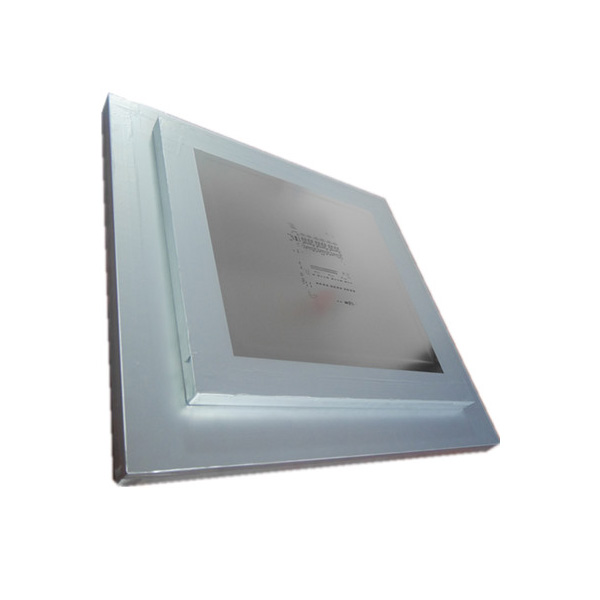

736X736 Framed Stencil

Framed or “glue-in” stencils are designed for high-volume screen printing on PCBs, They are permanently mounted inside the frame using a mesh border to evenly stretch the foil taut like the frameless stencils, these also have smooth aperture walls that work well for ultra fine pitches and micro BGAS.

Description

Framed or “glue-in” stencils are designed for high-volume screen printing on PCBs, They are permanently mounted inside the frame using a mesh border to evenly stretch the foil taut like the frameless stencils, these also have smooth aperture walls that work well for ultra fine pitches and micro BGAS.

Advantage

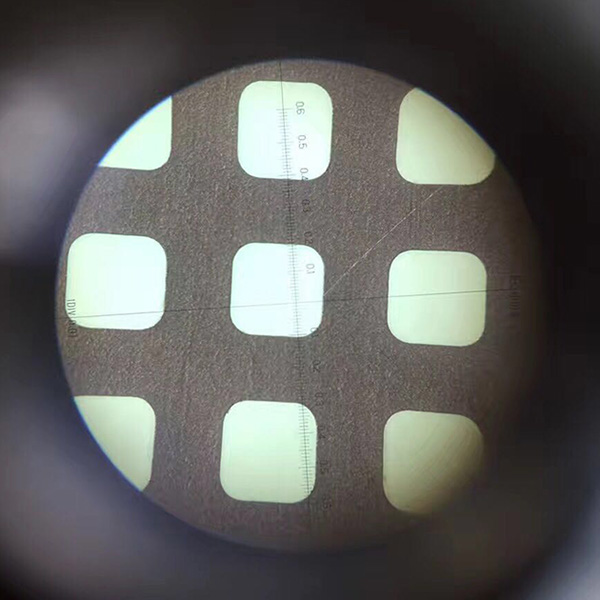

· Very clean laser-cut apertures

· Excellent print performance

· Non-removable non-fading fiducial

· Resistant to extreme wear

· Optimum solder paste placement and volume control

· Electropolish and Nanocoating available!

Specifications

Stencil Side Material Foil Thickness (in inches) Frame Type
Top Side
Bottom Side
Top&Bottom(on single stencil)
Top&Bottom(on separate stencil)
Stainless Steel0.003
0.004
0.005
0.006
0.007
0.008
0.009
0.010
0.011
0.012
QTS
Zelflex
Stencil Length (in inches)Stencil AlignmentStencil Width (in inches)Maximum Size
Center
Offset
1-1012 ʺ x 10 ʺ
FiducialsTechnologyMinimum Cut WidthRepeatability
Half etch
Cut through
100% Laser Cut
Electropolishing
0.002ʺ±16 µm
Positional AccuracyAperture Dimensional Tolerance
±12.5 µm±9 µm
