SMT stencil supplier China | smt framed stencil

Material: Stainless steel

Stencil size: 370*470mm, 584*584mm, 736*736mm etc

Surface: 100% Laser Cut Electropolishing

Foil Thickness:0.005 0.006 0.007 0.008 0.009 0.010 0.012 etc

Fiducial: Half etch, Cut through

SMT stencil supplier China | smt framed stencil

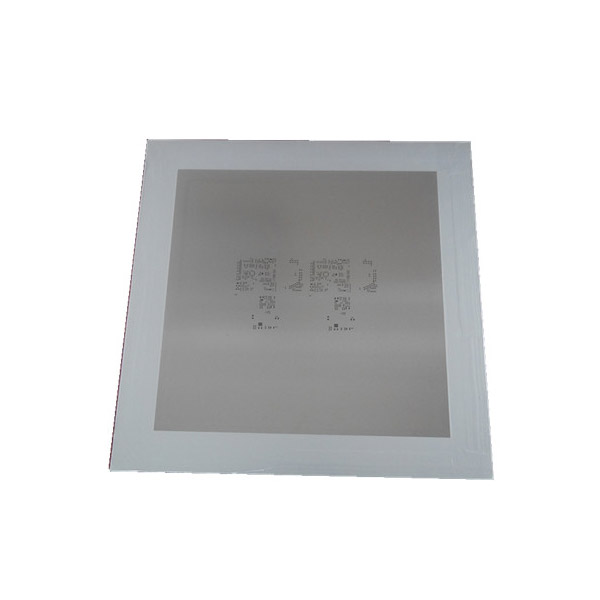

Framed stencils or “glue-in” stencils are designed for high-volume screen printing on PCBs, They are permanently mounted inside the frame using a mesh border to evenly stretch the foil taut like the frameless stencils, these also have smooth aperture walls that work well for ultra fine pitches and micro BGAS

Stencil Side

Material

Foil Thickness (in inches)

Frame Type

Top Side
Bottom Side
Top&Bottom(on single stencil)
Top&Bottom(on separate stencil)

Stainless Steel

0.003
0.004
0.005
0.006
0.007
0.008
0.009
0.010
0.011
0.012

QTS
Zelflex

Stencil Length (in inches)

Stencil Alignment

Stencil Width (in inches)

Maximum Size


Center
Offset

1-10

12 ʺ x 10 ʺ

Fiducials

Technology

Minimum Cut Width

Repeatability

Half etch
Cut through

100% Laser Cut
Electropolishing

0.002ʺ

±16 µm

Positional Accuracy

Aperture Dimensional Tolerance

±12.5 µm

±9 µm
