Material: Stainless steel

Stencil size: 370*470mm, 584*584mm, 736*736mm etc

Surface: 100% Laser Cut Electropolishing

Foil Thickness:0.005 0.006 0.007 0.008 0.009 0.010 0.012 etc

Fiducial: Half etch, Cut through

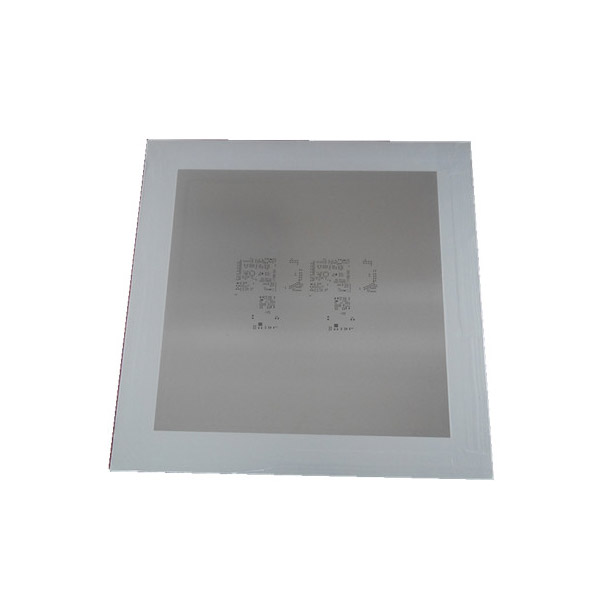

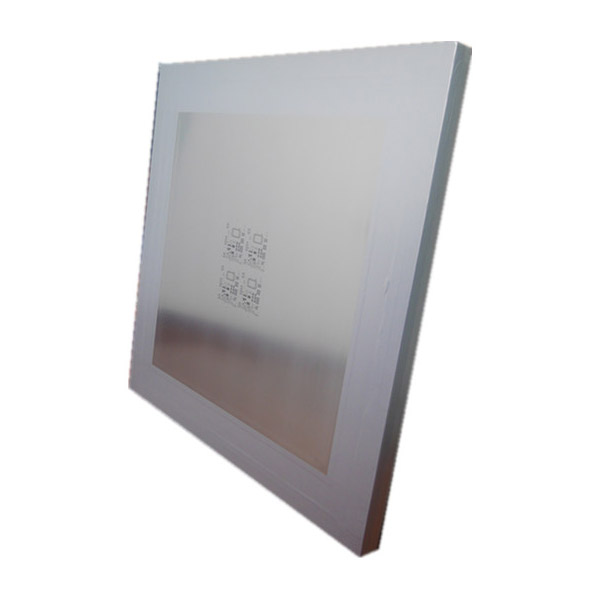

Framed stencils or “glue-in” stencils are designed for high-volume screen printing on PCBs, They are permanently mounted inside the frame using a mesh border to evenly stretch the foil taut like the frameless stencils, these also have smooth aperture walls that work well for ultra fine pitches and micro BGAS

Stencil Side	Material	Foil Thickness (in inches)	Frame Type
Top Side Bottom Side Top&Bottom(on single stencil) Top&Bottom(on separate stencil)	Stainless Steel	0.003 0.004 0.005 0.006 0.007 0.008 0.009 0.010 0.011 0.012	QTS Zelflex
Stencil Length (in inches)	Stencil Alignment	Stencil Width (in inches)	Maximum Size
	Center Offset	1-10	12 ʺ x 10 ʺ
Fiducials	Technology	Minimum Cut Width	Repeatability
Half etch Cut through	100% Laser Cut Electropolishing	0.002ʺ	±16 µm
Positional Accuracy	Aperture Dimensional Tolerance
±12.5 µm	±9 µm
