Frameless Stencil
Home > Products > Frameless Stencil
Products

frameless smt stencil manufacture China | smt stencil manufacturer india

Material: Stainless steel

Stencil size: 370*470mm, 584*584mm, 736*736mm etc

Surface: 100% Laser Cut Electropolishing

Foil Thickness:0.005 0.006 0.007 0.008 0.009 0.010 0.012 etc

Fiducial:Half etch,Cut through

frameless smt stencil manufacture China | smt stencil manufacturer india

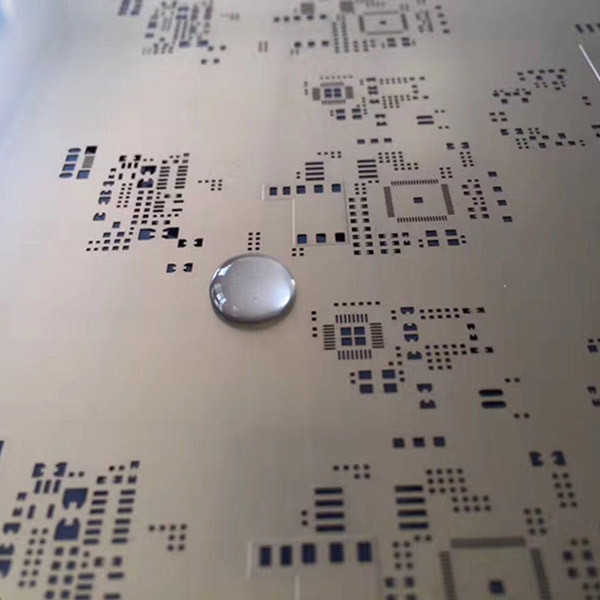

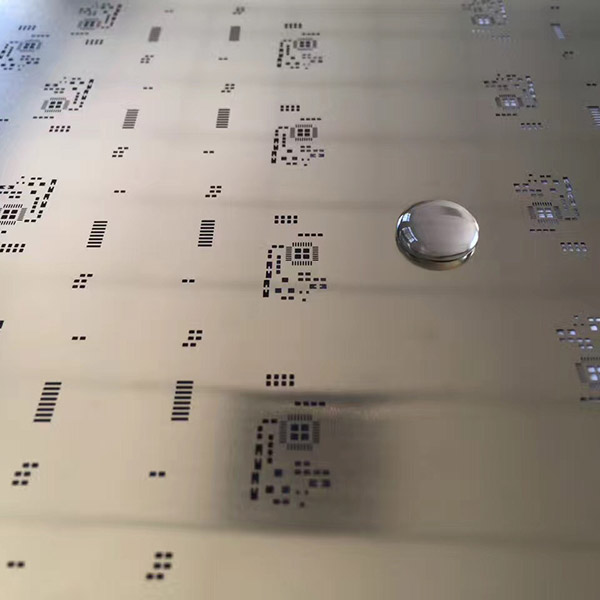

Frameless PCB stencils are designed to work with stencil tensioning systems and are optimum for short runs, prototyping and hand printing on Printed Circuit Boards (PCBs). The PCB stencil’s smooth aperture walls work well for ultra fine pitches, micro BGAs, and small bottom-terminated components. Frameless PCB stencils mount directly into a frame system without the need for glue or mesh.


Stencil Side

Material

Foil Thickness (in inches)

Frame Type

Top Side
Bottom Side
Top&Bottom(on single stencil)
Top&Bottom(on separate stencil)

Stainless Steel

0.003
0.004
0.005
0.006
0.007
0.008
0.009
0.010
0.011
0.012

QTS
Zelflex

Stencil Length (in inches)

Stencil Alignment

Stencil Width (in inches)

Maximum Size


Center
Offset

1-10

12 ʺ x 10 ʺ

Fiducials

Technology

Minimum Cut Width

Repeatability

Half etch
Cut through

100% Laser Cut
Electropolishing

0.002ʺ

±16 µm

Positional Accuracy

Aperture Dimensional Tolerance

±12.5 µm

±9 µm
