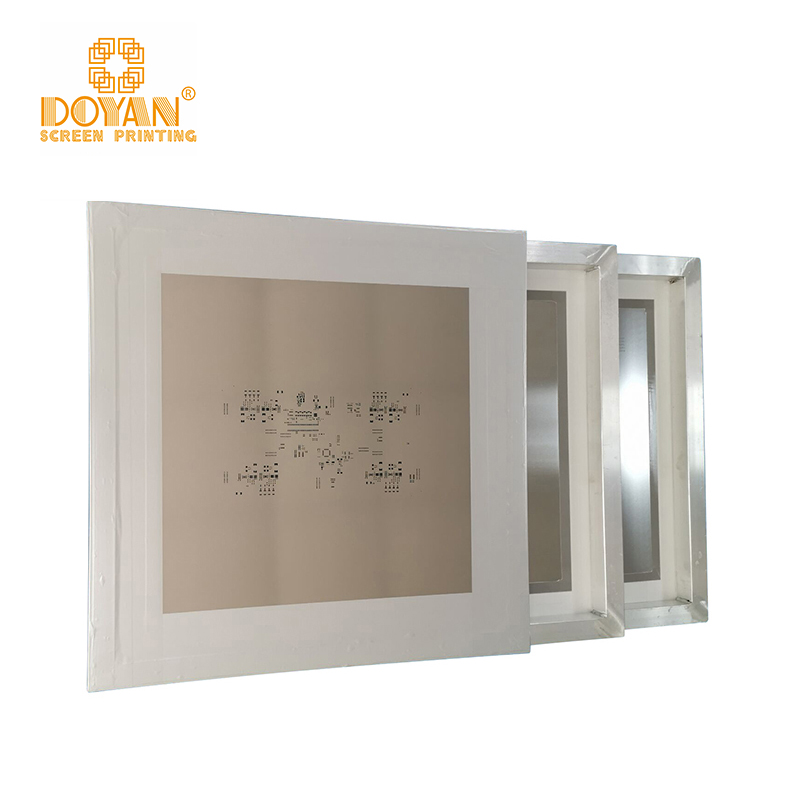

Framed SMT Stencils are designed for high volume screen printing on printed circuit boards. These SMT stencils otherwise known as "glue-in" stencils are laser cut solder paste stencils permanently mounted in a stencil frame using a mesh border to tightly stretch the foil into the frame.

We even have a program where existing stencils in their frames can be re-used for your newer stencil requirements. Credit is given to you for turning these while eliminating the clutter and the space requirements in storing these stencils.

BEST fabricates framed SMT stencils for a variety of stencil printers and can deliver them in a timely fashion.

SMT Frame
SMT Stencil
SMT Meshed Frame
Size
Aluminum profile
Frame size
SS Sheet thickness
SS sheet size
Stretched mesh
Adhesive
736x550mm
30x40x2.0mm




736x550mm
650x550mm
600x550mm
15x20"
23x23"
29x29"
0.08mm




651x420mm
470x420mm
520x420mm
10x15”
18x18”
18x18”
18x18”
24x24”
24x24”
24x24”
24T/29T/36T
Tension:30-40N
Epoxy AB glue
650x550mm
30x40x2.0mm
0.09mm
600x550mm
30x40x2.0mm
0.10mm
15x20"
25x38x1.6mm
0.11mm


23x23"
12.7x38.1x2.5mm
0.12mm
25x38x1.6mm
0.13mm
38x38x2.0mm
0.15mm


29x29"
12.7x38.1x2.5mm
0.20mm
38x38x2.0mm
0.25mm
40x40x2.0mm
0.30m
